SNK Neo Geo 4 slot arcade pcb repair

This Neo Geo 4 slot motherboard reported ‘VRAM error’ on boot.  There is a useful diagnostic rom at http://smkdan.eludevisibility.org/neo/diag/ so I burned this to board to see if it gave more info.  Well.. not really, still a VRAM error at location 0000.

IMG_2420

Despite the popularity of these boards I couldn’t find a guide showing conclusively what each RAM chip is on the board, perhaps because they change about depending on the many different motherboard revisions.

IMG_2425

Eventually I worked out it was one of the top two surface mounted chips.  The VRAM attaches to the graphics custom chip, rather than the 68K cpu directly.  The error is a stuck data bit which is quite a rare error for a RAM – often this means a bad trace so I examined all the traces from the RAM to the custom chip and didn’t find anything.  The worst case is that the custom chip itself is bad.  As I didn’t yet really know which of the two RAMs was the upper (top 8 bits) or lower (bottom 8 bits, of which one was stuck) I desoldered them and swapped them.  The error moved from the lower RAM to the upper RAM which pretty much confirms a bad RAM chip rather than traces or custom chip.

IMG_2423

I removed a RAM chip from another broken NeoGeo and swapped it in.  All tests pass!

IMG_2426 IMG_2427

Added the 4 slot board back on top (the lower board can run on it’s own), all 4 slots and audio tested good.

IMG_2437 IMG_2435 IMG_2430



By

Data East Cobra Command arcade pcb repair

This turned out to be quite a complex fix…  Board booted to a black screen and made no sound, but a logic probe showed the data and address bus lines on the CPU and program ROM were all active, so the CPU was trying to do something at least.

There was obvious physical damage on the board in at least 3 places – a smashed custom resistor pack and gouged traces on the bottom of the board and on the top near the first program ROM.  I knew the resistor pack was used as the digital to analog convertor for one of the RGB channels, so although it would give bad colors, that shouldn’t stop the game running.  After checking and repairing the traces…  absolutely no change.

IMG_2445 IMG_2325

IMG_2329

My next theory was that the program RAM was bad and this was causing the CPU to crash.  I checked the program in the MAME debugger and it clears all memory before branching to a subroutine (with bad RAM a subroutine will mean a crash when the CPU stack is popped as the CPU will be given a bad return address).  This seemed to match the board behavior at least as the palette RAM was being cleared to all black.  But what RAM is the main CPU RAM?  This board has 11 RAM chips and no published schematics.  Usually the RAM next to the tilemap customs are for tilemaps, the RAM next to the sprite customs are for sprites, and the RAM next to the program ROMs is for the CPU.  So I pulled the RAM nearest the ROMs (H15) and it tested ok.  I then pulled the other RAM sitting on it’s own (B10) – that tested ok too.

Rather than risk damaging the board more by pulling all the RAMs (not to mention it would take ages) I took a different approach and wrote a little test program to see if the CPU was actually capable of running code. I modified the program ROM to print a string straight away, rather than clear memory and branch.  It worked!  So this proved the CPU, program, graphics was working to some degree, but didn’t explain why the correct program led to a black screen.  I worked out a more complex test program and wrote values to various RAM areas and read them back and printed on screen (again, taking care never to use the stack or call any subroutines as none of the RAM could be trusted).

IMG_2346

IMG_2355

Note there is no green in the images – I expected that from the bust resistor pack.  So the memory tests revealed that for every second byte the D0 value was stuck low (so writing 01 returns 00, writing 45 returns 44).  I used a logic probe on each RAM chip until I found the stuck data pin – turns out the main CPU ram is the pair at C10 and C11.  Removed this RAM chip – it tested bad, put in a replacement.. and still black screen.  I examined the traces on the board again and found another tiny break – all that work just to find a break near the others I already repaired (the pic is after I scraped it back more to repair it).

IMG_2358

Anyway…  game boots now!

IMG_2360

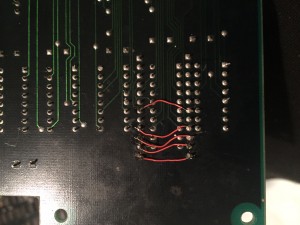

Graphics are clearly messed up and of course there’s still no green channel.  The broken resistor pack is a custom Data East pack used on many other games from this period.  I wasn’t worried about this too much as the worst case was I could just put in separate resistors to mimic the pack. I had a different plan in mind though – each resistor pack supports two channels, so with 4 channels available, and only 3 channels needed (red, green and blue) there had to be a spare… I traced out the TTL around the packs to find the unused channel, and just bridged one pack onto the other. Worked first time!

IMG_2441

IMG_2386

(The resistors values are fairly common at 220 Ohms, 470, 1000, 2200 to turn the 4 bit digital palette into an analog signal. The resistor pack contains a 5th value – 4800 Ohms but that is not used in this game).

On the home straight now – some corruption on the title screen and in-game.  This was quickly narrowed down to the tilemap ROMs in the corner of the board.  Removing them caused the corruption to go away (along with correct graphics too of course).  One ROM had obvious corrosion (EL07) but the ROM next to it was also bad (EL06).  I cleaned up the legs but the problem remained so it seems the problem was internal.  I replaced both with 27c512 eproms burned from the MAME set.

IMG_2362

And at last, game is perfect again!

IMG_2394







By

Taito Rastan arcade pcb repair

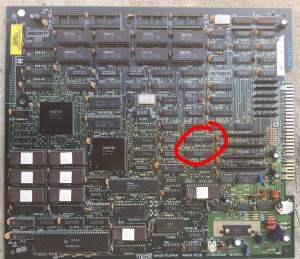

After working on pcbs with no self-tests for a while it was quite refreshing for this one to say exactly what was wrong with it – ‘COLOR RAM ERROR’.  The two color RAMs are located next to the PC040DA customs which are the digital to analog convertors for each of the RGB channels.  A logic probe showed that the lower RAM had stuck outputs.  Replaced this chip and the board was perfect.

Note that although the board has 2018-35 silkscreened on it (35ns response time RAM) the RAM installed was actually 45ns which works fine.

IMG_2200 IMG_2203



By

Data East Gate of Doom arcade pcb repair

Board initially seemed dead, no rgb video or sync output at all.  Logic probe showed that there was actually some CPU activity, but a lot of the graphics chips had no clock signal.

Attempt 1

Probing some TTL around the graphics crystal revealed a LS75 chip that seemed to have a stuck output.  This is a latch that outputs both Q and ‘not Q’ for input D.  The logic probe shows both D and Q pulsing, but ~Q was stuck low.  Replaced with another chip and it behaved exactly the same.  I have to assume ~Q is intentionally grounded out somewhere on the board and isn’t used.

IMG_2071IMG_2069

Attempt 2

I decided to trace out what controls the sync signal on the board.  The path runs from the edge connector to the diode at FB4, then the resistor at R13, then the LS04 chip @ L11.  The LS04 is used as a double invertor and the input comes from the custom graphics chip 55.

There are no schematics for Gate of Doom online, but there are for Desert Assault which is from the same era and also uses the 55 custom.  This shows the same setup with sync coming from pin 157 then a double inversion, so it seems to be the same design.  The schematics show the inputs to the custom – 14MHz clock to pin 11 – this was present and correct, reset on pin 15, again tested ok.  Various +5V lines also tested fine.  So unfortunately it seemed the custom chip was not working.

IMG_2076

Attempt 3

All of the other inputs to the graphics custom chip 55 come from the PAL’s on the board.  And they run hot – a couple quickly shooting up to 43C – so I decided to replace them all with GAL’s.  I didn’t really expect much from this, as the Data East PAL’s of this era often run very hot, and I’ve never seen a failed one.  Indeed this had no effect, but the GAL’s do run much cooler.

IMG_2081

Attempt 4

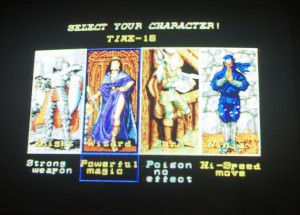

Examined the custom 55 again – applying some horizontal force to the pins revealed a handful of them moving – therefore not making good connection to the pads on the board.  Really I should have noticed this before, so I reflowed the solder with a hot iron on the pins to stick them to the pads again.  Success!  Everything now working 100%, including sound.  So even though the sync line was connected, some other control signals to the custom chip must have been disconnected.

IMG_2083 IMG_2092 IMG_2090 IMG_2085





By

Atari Asteroids / Wells 19V2000 HV Diode

There’s a wealth of information on old black & white vector monitors on the internet, so when the picture on my Asteroids ‘bloomed’ up much larger than it should be and became unstable I quickly found tips suggesting the high voltage diode was at fault.  However.. most of this information was actually written in Usenet times – text only documents!  I couldn’t actually find a picture anywhere of where this diode is.

So for anyone else searching, I’ve circled it in red in the photo.  I used a diode marked ‘VARO H598′ bought from Ebay which is not the original part, but comes recommended as a replacement, and indeed it works perfectly.

I should also point out you should make sure the monitor CRT is fully discharged before going near this part as the high voltage can be present even when the monitor is powered off.  Info on that can be found elsewhere on the internet.

IMG_1269 IMG_1270 IMG_1272IMG_1291





By

Midnight Resistance arcade cabinet restore

Cab wasn’t terrible when I got it – two chunks of wood missing, lot of mold and dust, but the wood and vinyl fundamentally ok, so I decided to paint it rather than re-apply vinyl or laminate.

IMG_1417 IMG_1419



Tried out ‘wood’ Bondo rather than regular Bondo to patch up scuffs and missing pieces.  I used some spare t-molding as a guide to fill the missing chunk at the control panel, worked out quite well.  Also filled in the holes from those big ugly lock bars, not putting them back on.

IMG_1503 IMG_1502

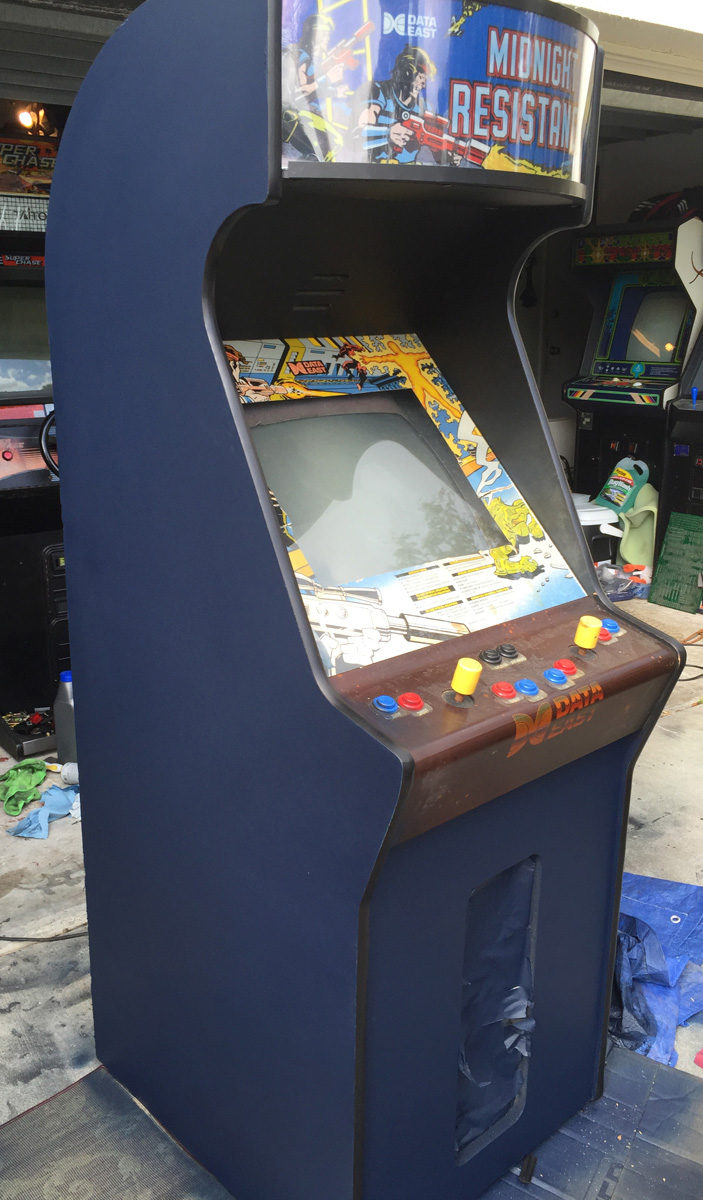

Some painting, then sanding, then more painting..  Plus new t-molding all-around, and replaced faded marquee with a reproduction.

IMG_1568

I swapped out the plain joystick tops with some burn marks for some Data East logo tops I’ve had sitting around for a while.  They aren’t perfect but better.

IMG_1590

Reproduction control panel overlay added and NOS side-art that I’ve been hoarding for a while.  Original bezel remains even though it has some stains and a rip.  Might change it out later.

IMG_1591 IMG_1569

Coin door was fully disassembled, some rust cleaned up, repainted and new locks added.

IMG_1831

End result!  It’s not a 10/10 maybe an 8 out of 10, but good enough :)

IMG_1842



By

Time Soldiers arcade PCB repair

Bought as a non-working board for $9.99 – the most obvious problem is that no CPU was present so clearly the game wasn’t going to do much without that!  With a replacement 68000 in hand (again from Ebay for only a few $) the game booted to garbage.

IMG_1286   IMG_1285

A logic probe on the CPU address and data lines showed zero activity, so the CPU clearly wasn’t doing anything.  Power and ground tested as good.  The reset and halt lines on the CPU were pulsing, so it seemed something on the board was trying to kick the CPU into life.  Testing the CLK pin on the 68000 showed it to be stuck low.  I traced out where this pin went and it connects to the output (Q) of a LS74 next to the oscillator.   The logic probe seemed to show this chip had failed, as a CLK was pulsing on the LS74 input, but the outputs remained stuck (one output feeds back into a LS74 input, so the output should toggle hi/lo every clock in order to form the 68K clock).

Tested off-board – failed – replacement from Dragonninja parts board soldered in – board boots right up!  Quickest TTL level fix I’ve ever done.

IMG_1290 IMG_1293 IMG_1289

At first I thought there was a graphics problem as the title screen was corrupt – though it’s strange all of the other screens were perfect.  Then I remembered I’d seen this a long time ago in MAME..  If you boot the English language ROMs with the Japanese dipswitch enabled the title screen is corrupt (because it expects the Japanese character ROMs).

Unfortunately this board is stuck in Japanese – because the dip-switch isn’t being read by the software.  A previous owner has removed resistor packs for the dip and the jamma inputs, presumably to repair something else!

That shouldn’t be too hard a fix – to be continued.

IMG_1287







By

Pacman arcade PCB repair

Pacman did not appear, and two of the ghosts did not appear.  Additionally the text at the top of the screen (Hi Score) and the bottom (Credit) were corrupt.  A tip on the KLOV forum suggested this was likely to be the VRAM addresser daughterboard.  Nothing looked wrong with a logic probe so I decided to remove the LS157 and LS86 chips as I have a plentiful supply from a Dragonninja parts board.

IMG_1219

As it turns out I didn’t even get to the LS86′s as one of the 157′s tested bad when removed, and replacing it solved the problem!

IMG_1226 IMG_1228



By

Viper Phase 1 / Seibu SPI arcade pcb repair

Sound would go quiet after a few minutes, and it seemed like different elements of the sound would have incorrect volumes (drum track, music, explosions).  I think that’s because the sound chip outputs multiple channels which are mixed externally before the stereo amp but didn’t look too much into it.

Instead, I just swapped out all the capacitors in the audio section – I think all are 100uF, 25V.  This seemed to fix all the audio problems.

IMG_0829 IMG_0830 IMG_1122

By

Gauntlet Legends / Midway Vegas battery

The battery is barely mentioned in the manual, but test mode will tell you if it has failed.  Just replace the IC in the picture which is on the board with the jamma connector – it’s in a socket even though it doesn’t look like it is.  Part number is M4T28-BR12SH1.



IMG_1145 IMG_1147

IMG_1142
